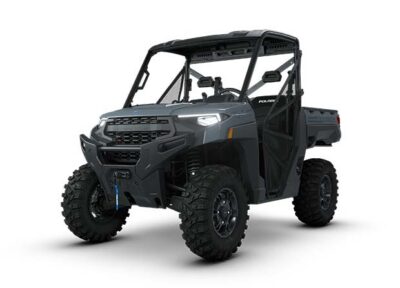

RANGER XP 1000 HD 2026
RRP from $27,995 SAVE $2,000
- Features
- Specifications
- Gallery
Features
KING OF THE CATEGORY
All the greatest features of the XP 1000 plus Active Descent Control (ADC) and HD features, including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushing, sealed ball joints, driveshaft spline seals and hand brake.
- New for 2026
- Colourway Stealth Grey
- Roof fitted as standard
- Recalibrated Steering
- 50% Smoother Shifter via the lever
- Factory fitted 4500lb winch
- 25.4 cm Suspension Travel
- 14″ Alloy Wheels
- 3-Mode Throttle Control
- Premium Interior
- 6-Position Polaris Pulse Bus Bar
Request a Price
Vehicle enquiry form. Submit your details to request a call back.
-
SEATS 3
-
454 KG DUMP BOX CAPACITY
-
Electronic Fuel Injection
-
Electronic Power Steering Wheel
-
Electric Start
-
82 HP
-
Independent Rear Suspension
-
On Demand True All Wheel Drive
-
1,134 KG TOWING CAPACITY
ENGINE & DRIVE TRAIN
| ENGINE TYPE | 4-Stroke Twin Cylinder DOHC |
| CYLINDERS-DISPLACEMENT (cc) | 999 CC / 82 HP |
| FUEL SYSTEM | Electronic Fuel Injection |
| TRANSMISSION/FINAL DRIVE | Automatic PVT H/L/N/R/P; Shaft |
| DRIVE SYSTEM | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode. Active Decent Control (ADC) and HD features, including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushing, sealed ball joints, driveshaft spline seals and hand brake. |
| COOLING | Liquid |
SUSPENSION / BRAKES / WHEELS
| FRONT SUSPENSION | Dual A-Arm with 2549 cm Travel |
| REAR SUSPENSION | Dual A-Arm, IRS 25.4 cm Travel |
| FRONT / REAR BRAKES | 4-Wheel Hydraulic Disc with Dual-Bore Front Callipers |
| PARKING BRAKE | Hand-Actuated |
| FRONT TYRES | 29 x 9-14; Maxxis MU511 |
| REAR TYRES | 29 x 11-14; Maxxis MU521 |
| WHEELS | 14" Aluminium |
DIMENSIONS
| BED BOX DIMENSIONS (L X W X H) | 93 x 138 x 32 cm |
| FRONT/REAR RACK OR BOX CAPACITY | 454 kg |
| FUEL CAPACITY | 43.5 L |
| GROUND CLEARANCE | 36 cm |
| OVERALL VEHICLE SIZE (L X W X H) | 305 x 158 x 201 cm |
| PAYLOAD CAPACITY | 680 kg |
| WHEELBASE | 206 cm |
| ESTIMATED DRY WEIGHT | 768 kg |
FEATURES
| CARGO SYSTEM | Lock & Ride |
| ELECTRONIC POWER STEERING | Standard |
| HITCH TOWING RATING | 1,134 kg |
| HITCH/TYPE | Standard 5 cm Receiver |
| INSTRUMENTATION | Dual-Sweep Analog Dials w/ 4" LCD Information Center: User selected blue/red backlighting & brightness, Programmable service intervals, Speedometer, Tachomter, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temp, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| LIGHTING | Dual LED headlights and Dual LED taillights |
| VARIANTS | Off-Road |
