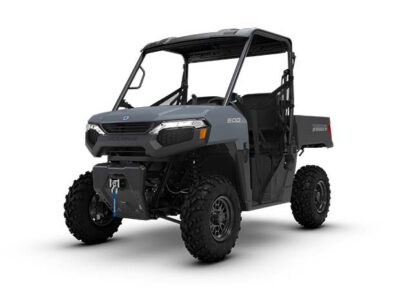

2026 RANGER 500 ENTRY LEVEL
RRP from $15,995 SAVE $1,000
- Features
- Specifications
- Gallery
Features
RIGHT TOOL. RIGHT PRICE.
- STEALTH GREY
- 28 HP
- 25.4 cm Ground Clearance
- 680 kg Towing Capacity
- Based upon SP 570 Engine (detuned)
- All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode
- 25″ Tyres on 12″ Alloy Wheels
Request a Price
Vehicle enquiry form. Submit your details to request a call back.
-
SEATS 2
-
226.8 KG
-
Electronic Fuel Injection
-
Electronic Power Steering Wheel
-
Electric Start
-
32 HP
-
Independent Rear Suspension
-
On Demand True All Wheel Drive
-
Polaris Variable Transmission
-
Reverse Gear
-
Roll Over Protection Structure
-
680.4 KG
ENGINE & DRIVE TRAIN
| ENGINE TYPE | 4-Stroke Single Cylinder |
| CYLINDERS-DISPLACEMENT (cc) | 567cc / 28 HP (Detuned) |
| FUEL SYSTEM | Electronic Fuel Injection |
| TRANSMISSION/FINAL DRIVE | Automatic PVT H/L/N/R/P; Shaft |
| DRIVE SYSTEM | All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode |
SUSPENSION / BRAKES / WHEELS
| FRONT SUSPENSION | MacPherson Strut 22.9 cm Travel |
| REAR SUSPENSION | Dual A-Arm, IRS 25.4 cm Travel |
| FRONT / REAR BRAKES | 4-Wheel Hydraulic Disc |
| PARKING BRAKE | Park In-Transmission |
| FRONT TYRES | 25 x 8-12; Carlstar 489 (4 Ply) |
| REAR TYRES | 25 x 10-12; Carlstar 489 (4 Ply) |
| WHEELS | 12" Alloy |
DIMENSIONS
| BED BOX DIMENSIONS (L X W X H) | 82.7 x 117.3 x 28.6 cm |
| FRONT/REAR RACK OR BOX CAPACITY | 227 kg |
| FUEL CAPACITY | 35.9 L |
| GROUND CLEARANCE | 25.4 cm |
| OVERALL VEHICLE SIZE (L X W X H) | 279.4 x 148.6 x 190 cm |
| PAYLOAD CAPACITY | 453 kg |
| WHEELBASE | 186 cm |
| ESTIMATED DRY WEIGHT | 524 kg |
FEATURES
| CARGO SYSTEM | Lock & Ride |
| ELECTRONIC POWER STEERING | Not Available |
| HITCH TOWING RATING | 680 kg |
| HITCH/TYPE | Standard 5 cm Receiver |
| INSTRUMENTATION | 4" LCD rider information centre: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder |
| LIGHTING | LED Headlights |
| VARIANTS | Off-Road |
| OTHER STANDARD GEATURES | Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 340 CCA Battery, 660W Charging System (Stator), 20.25 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Steel Front Bumper With Winch Mount and Bull Bar, Rear Wheel Liners |
