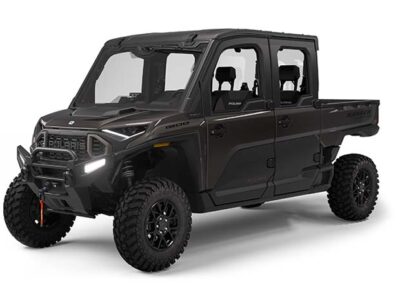

RANGER CREW XD 1500 NORTHSTAR EDITION ULTIMATE 2024
Drive Away INC GST from $66,495
- Features
- Specifications
- Gallery
Features
BORN TO WORK. BUILT STRONG.
Part of the new Extreme Duty class, the RANGER XD 1500 is the strongest, most capable, most comfortable RANGER.
-
SEATS 6
-
680 kg
-
Electronic Fuel Injection
-
Electronic Power Steering Wheel
-
Electric Start
-
38cm Ground Clearance & 30.4cm Suspension Travel
-
110 HP
-
On Demand True All Wheel Drive
-
Polaris Variable Transmission
-
Reverse Gear
-
Roll Over Protection Structure
-
1588 kg
ENGINE & DRIVETRAIN
| MOTOR | 4-Stroke DOHC Triple Cylinder |
| CYLINDERS-DISPLACEMENT (CC) | 1498cc |
| HORSEPOWER | 110 HP |
| TORQUE | 105 LB-FT |
| FUEL SYSTEM/BATTERY | Electronic Fuel Injection |
| TRANSMISSION/FINAL DRIVE | STEELDRIVE Automatic Transmission: D/R/P |
| DRIVE SYSTEM TYPE | On-Demand True AWD/2WD/Turf/Ultra Turf, Drive Modes: Comfort, Standard, Sport, Tow/Haul, Equipped with creep in drive and reverse to help with low speed drivability for smoother power delivery |
| ENGINE BRAKING SYSTEM | Drive Mode Specific Engine Braking System. Hill Assist enables the vehicle to hold its position, allowing easier maneuvering and improved control when stopping and starting on hills. |
| COOLING | Liquid |
SUSPENSION / BRAKES / WHEELS
| FRONT SUSPENSION | Dual A-Arm 30.5 cm Travel |
| TURNING RADIUS | 6 m |
| REAR SUSPENSION | Dual Arched A-Arm IRS 30.5 cm Travel |
| FRONT / REAR BRAKES | Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers |
| PARKING BRAKE | Park In-Transmission |
| FRONT TYRES | 30 x 10-15; KENDA® CROSS TRAIL |
| REAR TYRES | 30 x 11-15; KENDA® CROSS TRAIL |
| WHEELS | 15" Aluminum |
DIMENSIONS
| BED BOX DIMENSIONS (L X W X H) | 110.2 x 142.2 x 34 cm Equipped with Power Box Lift |
| BOX CAPACITY | 680 kg |
| FUEL CAPACITY | 51.5 L |
| GROUND CLEARANCE | 38 cm |
| OVERALL VEHICLE SIZE (L X W X H) | 416.5 x 163 x 198 cm |
| PAYLOAD CAPACITY | 773 kg |
| PERSON CAPACITY | 6 |
| WHEELBASE | 322.6 cm |
| ESTIMATED DRY WEIGHT | 1,507 kg |
FEATURES
| CARGO SYSTEM | Lock & Ride MAX |
| ELECTRONIC POWER STEERING | High Output EPS |
| HITCH TOWING RATING | 1588 kg |
| INSTRUMENTATION | Driver Forward Information Center w/ 4 in Color Display + Analog Speedometer & Tachometers: User Selectable Blue/Red Backlighting & Brightness,Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Oil Pressure, Transmission Indicator, EPS Indicator, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Speed Limiting |
| LIGHTING | LED Headlights w/ LED Taillights, LED Rear Work Light, LED Dome Light, Door Puddle Lighting, Interior Accent Lighting, Lighting Modes: Low, High, Accent, Blackout. Blackout mode switches off the headlights and dims interior lighting |
| OTHER STANDARD FEATURES | Premium Contoured Seats with Additional Bolstering, Premium Headrests and Center Armrest. Premium, Telescoping Steering Wheel and Painted Interior Accents. Polaris Pulse Electrical System (6 position), Overhead Switch Panel, Roof Pulse Bar (x position), 140 Amp Charging System, Front Bumper, DC Outlet, USB Charge Port, Trickle Charger, 12V Located in the Cargo Box with In-Dash On/Off Switch, NFC Front Badge, NorthStar Badge. Polaris HD 6,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote. Power Windows (Front & Rear) |
| WATER FORDING HEIGHT | Equal to the Floorboards |
| VARIANTS | Off-Road |
