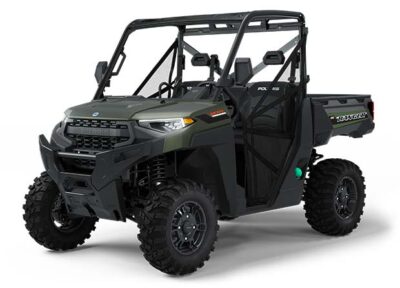

RANGER DIESEL HD EPS ADC 2024
RRP from $32,995
- Features
- Specifications
- Gallery
Features
A WHOLE NEW KIND OF RANGER TOUGH
The RANGER Diesel is tougher and more reliable than ever.
- SAGE GREEN 2024
- Sealed bearings and bushings
- Heavy-duty steering rack
- 2-piece sealed CV driveshaft
- Mud Guards
- Easy-Access Radiator Panels
- Tough, One-Piece Chassis
*Promotion ends 31/12/2024
-
Adjustable Dual Springs With Walkie Evens Needle Shocks
-
Adjustable Seat And Steering Wheel
-
SEATS 2
-
435
-
Electronic Power Steering Wheel
-
Electric Start
-
24.8 HP
-
Independent Rear Suspension
-
On Demand True All Wheel Drive
-
Polaris Variable Transmission
-
Roll Over Protection Structure
-
1134KG
ENGINE & DRIVETRAIN
| ENGINE TYPE | Kubota 3-Cylinder Diesel |
| CYLINDERS-DISPLACEMENT (cc) | 989cc / 24.8 HP |
| FUEL SYSTEM | Mechanical Injection |
| TRANSMISSION/FINAL DRIVE | Automatic PVT H/L/N/R/P; Shaft |
| DRIVE SYSTEM | On-Demand True AWD/2WD/VersaTac Turf Mode. Active Decent Control (ADC) and HD Features Including Upgraded Rear Driveshaft, Grease Nipples, HD Sway Bar, Sealed Suspensions Bushings, Sealed Ball Joints and Driveshaft Spline Seals |
| COOLING | Liquid |
SUSPENSION / BRAKES / WHEELS
| FRONT SUSPENSION | Dual A-Arm with Stabiliser Bar 27.9 cm Travel |
| REAR SUSPENSION | Dual A-Arm IRS with Stabiliser Bar cm Travel |
| FRONT / REAR BRAKES | Hydraulic Disc |
| PARKING BRAKE | Hand-Actuated |
| FRONT TYRES | 27 x 9; R12 |
| REAR TYRES | 27 x 11; R12 |
| WHEELS | 12" Steel |
DIMENSIONS
| BED BOX DIMENSIONS (L X W X H) | 93.3 x 137.8 x 31.75 cm |
| FRONT/REAR RACK OR BOX CAPACITY | 435 kg |
| FUEL CAPACITY | 43.5 L |
| GROUND CLEARANCE | 33 cm |
| OVERALL VEHICLE SIZE (L X W X H) | 305 x 158 x 196 cm |
| PAYLOAD CAPACITY | 720 kg |
| WHEELBASE | 206 cm |
| ESTIMATED DRY WEIGHT | 766 kg |
FEATURES
| CARGO SYSTEM | Lock & Ride |
| HITCH TOWING RATING | 1134 kg |
| HITCH/TYPE | Receiver w/ ECE R55 Ball |
| INSTRUMENTATION | All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Trip Meters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, Hi-Temp Light, Clock, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm, Horn, Backup Alarm |
| LIGHTING | Headlights; Halogen |
| VARIANTS | Homologated Tractor |
