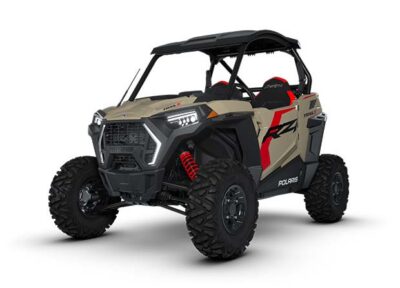

RZR TRAIL S 1000 ULTIMATE 2026

RRP from $28,995

RZR TRAIL S 1000 ULTIMATE 2026

  • Features
  • Specifications
  • Gallery

Features

TRAIL AGILITY. ENDLESS COMFORT.

You’ll never compromise with the all new RZR Trail S 1000 Ultimate. Tighten every turn with the stability and traction of a perfectly balanced chassis. Shorten the distance between turns with immediate acceleration. And ride on your terms with unmatched comfort.

  • SAND DUNE 2026
  • Electronic Power Steering
  • LED Headlights & Accents
  • Walker Evans Needle Shocks
  • Aluminium Rims
  • 7″ Infotainment Centre Powered by RIDE COMMAND
  • 27″ Tyres
  • Full Doors
  • Engine Braking System
  • Standard 3.2cm Hitch Receiver
  • Dual Analog Display

View current offers here

  • Capacity
    SEATS 2
  • Dump Box Capacity
    136 KG DUMP BOX CAPACITY
  • Electronic Fuel Injection
    Electronic Fuel Injection
  • Electronic Power Steering Wheel
    Electronic Power Steering Wheel
  • Horse Power
    100 HP
  • On Demand True All Wheel Drive
    On Demand True All Wheel Drive
  • Polaris Variable Transmission
    Polaris Variable Transmission
  • Roll Over Protection Structure
    Roll Over Protection Structure

ENGINE & DRIVE TRAIN

ENGINE TYPE 4-Stroke DOHC Twin Cylinder
CYLINDERS-DISPLACEMENT (cc) 999 CC / 100 HP
FUEL SYSTEM Electronic Fuel Injection
TRANSMISSION/FINAL DRIVE Automatic PVT H/L/N/R/P
DRIVE SYSTEM High Performance True On-Demand AWD/2WD
COOLING Liquid

SUSPENSION / BRAKES / WHEELS

FRONT SHOCKS 2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
FRONT SUSPENSIONS Dual A-Arm with Stabilizer Bar 31.1cm Travel
REAR SHOCKS 2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
REAR SUSPENSION Dual A-Arm with Stabilizer Bar and 33.5 cm Wheel Travel
FRONT / REAR BRAKES 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Callipers
PARKING BRAKE Park In-Transmission
FRONT TYRES 27 x 9-12; Trailmaster A/T
REAR TYRES 27 x 11-12; Trailmaster A/T
WHEELS 12" Cast Aluminium

DIMENSIONS

BED BOX DIMENSIONS (L X W X H) 52.5 x 94 x 20 cm
FRONT/REAR RACK OR BOX CAPACITY 136 kg
FUEL CAPACITY 35.9 L
GROUND CLEARANCE 31.8 cm
OVERALL VEHICLE SIZE (L X W X H) 282 x 152.4 x 176 cm
PAYLOAD CAPACITY 336 kg
WHEELBASE 200.7 cm
ESTIMATED DRY WEIGHT 625 kg

FEATURES

CARGO SYSTEM Lock & Ride
DOORS Full Doors
ELECTRONIC POWER STEERING Yes
HITCH TOWING RATING 680 kg
HITCH/TYPE Standard 3.2 cm Receiver
INSTRUMENTATION RIDE COMMAND 7” Glove-Touch Display: Built-In GPS, Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio Capable, In-Vehicle Communications Capable With Optional Sena Headsets. Dual-sweep analog dials with 4" LCD rider information center: user-selectable blue/red backlighting & brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet + 12V power plug.
LIGHTING Signature White LED Low/High with Accent Lights & Red LED Tail/Brake Lights
SEATS Bolstered Bucket Seats with Tolless Driver Seat Slider and Standard Passenger Seat Slider (Tool required for adjustment on passenger seat)
VARIANTS Off-Road
